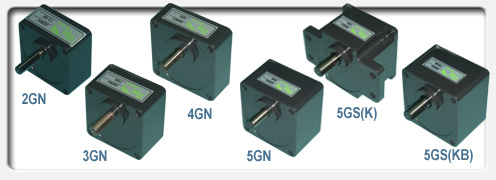

Selection of reducer's model  :

List of reduction ration and torque of reducers for different motors¡G

Motor Ratio 3 3.6 5 6 7.5 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 10X
6 2GN
¡¼(K)		 0.9 10 1.5 1.8 2.3 3 3.8 4.5 5.4 5.6 7 8.3 10 11 14 16 19 23 25 25 25 25 -
15 3GN
¡¼(K)		 2.2 2.6 3.7 4.4 5.5 7.2 9.1 11 13 14 17 21 24 29 34 41 47 50 50 50 50 50 -
25 4GN
¡¼(K)		 3.7 4.4 6.1 7.3 9.1 12 15 18 22 23 28 34 44 49 61 67 79 80 80 80 80 80 -
40 5GN
¡¼(K)		 6.0 7.3 10 12 15 20 25 30 36 38 47 56 68 75 94 100 100 100 100 100 100 100 -
60 5GN
¡¼(K)		 9.0 11 15 18 23 30 37 45 54 56 69 83 100 111 139 150 150 150 150 150 150 150 -
90 5GS
¡¼(K)		 13 15 21 26 32 40 50 60 72 74 93 111 134 148 185 222 250 250 250 250 250 250 -
120 5GS
¡¼(K)		 15 21.6 30 36 45 60 75 90 108 120 150 180 216 240 250 250 250 250 250 250 250 250 -

Remarks :

1. "¡¼" indicate the number of ratio.
2. The red number indicate that the running direction reverse to the motor.
