induction AC motor, induction AC motor manufacturer, Taiwan induction AC motor factory, GIN RE induction AC motor

Three Phase 220V

Type		Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
Cylindrical Shaft	Gear Shaft	Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
4IK25A-S	4IK25GN-S	25	1500	1500	0.2	-	4GN□	4GN□K	80
5IK40A-S	5IK40GN-S	40	2500	2500	0.31	-	5GN□	5GN□K	100
5IK60A-SF	5IK60GN-SF	60	3800	3800	0.4	-	5GN□	5GN□K	100
5IK60A-SF	5IK60GX-SF	60	3800	3800	0.4	-	-	5GX□K	250
5IK90A-SF	5IK90GX-SF	90	6000	5600	0.55	-	-	5GX□K	250
5IK120A-SF	5IK120GX-SF	120	8000	6800	0.72	-	-	5GX□K	250

Note : Frequency (HZ) 50/60. Polarization Number : (P) 4. Revolution (r.p.m.) 1450/1750.
Rated Time : Continue.

Three Phase 380V, 440V

Type		Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
Cylindrical Shaft	Gear Shaft	Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
4IK25A-U	4IK25GN-U	25	2000	1600	0.12	-	4GN□	4GN□K	80
5IK40A-U	5IK40GN-U	40	3200	2600	0.18	-	5GN□	5GN□K	100
5IK60A-UF	5IK60GN-UF	60	4800	4000	0.23	-	5GN□	5GN□K	100
5IK60A-UF	5IK60GX-UF	60	4800	4000	0.23	-	-	5GX□K	250
5IK90A-UF	5IK90GX-UF	90	7200	5800	0.32	-	-	5GX□K	250
5IK120A-UF	5IK120GX-UF	120	9000	6800	0.42	-	-	5GX□K	250

Note : Frequency (HZ) 50/60. Polarization Number : (P) 4. Revolution (r.p.m.) 1450/1750.
Rated Time : Continue.

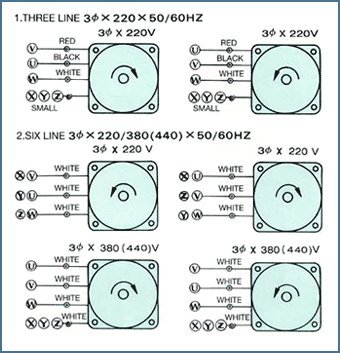

Wiring Diagram Of Three Phase Motor
