Single Phase 110V

Type		Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
Cylindrical Shaft	Gear Shaft	Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
2IK6A-A	2IK6GN-A	6	410	370	0.2	2.5	2GN□	2GN□K	25
3IK15A-A	3IK15GN-A	15	800	900	0.34	4	3GN□	3GN□K	50

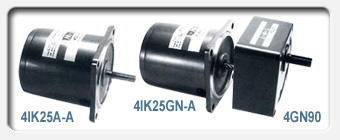

4IK25A-A	4IK25GN-A	25	1200	1500	0.48	6	4GN□	4GN□K	80
5IK40A-A	5IK40GN-A	40	2100	2500	0.7	12	5GN□	5GN□K	100
5IK60A-AF	5IK60GN-AF	60	3200	3700	1.2	14	5GN□	5GN□K	100
5IK60A-AF	5IK60GX-AF	60	3200	3700	1.2	14	-	5GX□K	250
5IK90A-AF	5IK90GX-AF	90	4800	5700	1.7	25	-	5GX□K	250
5IK120A-AFF	5IK120GX-AFF	120	5200	6300	3.0	30	-	5GX□K	250

Note : Frequency (HZ) 50/60. Polarization Number : (P) 4. Revolution (r.p.m.) 1450/1750.
Rated Time : Continue.

Single Phase 220V

Type		Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
Cylindrical Shaft	Gear Shaft	Output (W)	Staring Torque (g-cm)	Rated Torque (g-cm)	Rated Current (A)	Electric Capacity (uF)	Appropriate Reducer		Maximum Allowable Loading Capacity (kg-cm)
2IK6A-C	2IK6GN-C	6	410	370	0.1	0.8	2GN□	2GN□K	25
3IK15A-C	3IK15GN-C	15	800	900	0.17	1	3GN□	3GN□K	50
4IK25A-C	4IK25GN-C	25	1200	1500	0.24	1.5	4GN□	4GN□K	80
5IK40A-C	5IK40GN-C	40	2100	2500	3.5	2.5	5GN□	5GN□K	100
5IK60A-CF	5IK60GN-CF	60	3200	3700	0.6	3	5GN□	5GN□K	100
5IK60A-CF	5IK60GX-CF	60	3200	3700	0.6	3	-	5GX□K	250
5IK90A-CF	5IK90GX-CF	90	4800	5700	0.8	5	-	5GX□K	250
5IK120A-CFF	5IK120GX-CFF	120	5200	6300	1.5	6	-	5GX□K	250

Note : Frequency (HZ) 50/60. Polarization Number : (P) 4. Revolution (r.p.m.) 1450/1750.
Rated Time : Continue.

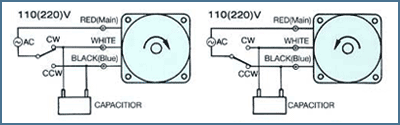

Wiring Diagram Of Single Phase Motor
