GH Type

GV Type

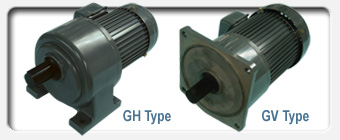

GH Type : Horizontal Gear Speed Reducers

Power
HP-4P		 Gear
Ratio		 A1 A2 D E F G H L J K M X Y Z Output Shaft Weight
Kg
P Q S T W
75W
(1/10HP)		 3~200 245 245 40 110 135 65 9 10 16 48 127 132 88.5 105 30 25 18 20 5 5.2
250~1800 355 355 65 130 160 90 11 13 18.2 56 127 152 97.5 105 40 35 22 25 7 6.8
100W
(1/8HP)		 3~50 245 265 40 110 135 65 9 10 16 48 127 132 88.5 105 30 25 18 20 5 5.3
60~200 280 300 65 130 160 90 11 13 18.2 56 127 152 97.5 105 40 35 22 25 7 6.9
250~1800 380 400 90 140 177 120 11 15 20.8 66 127 180 116 105 45 40 28 31 7 13
200W
(1/4HP)		 3~10 265 285 40 110 135 65 9 10 16 48 127 132 88.5 105 30 25 18 20 5 6.7
15~90 300 320 65 130 160 90 11 13 18.2 56 127 152 97.5 105 40 35 22 25 7 8.6
100~200 330 350 90 140 177 120 11 15 20.8 66 127 180 116 105 45 40 28 31 7 11
250~1800 465 485 130 170 210 160 13 20 30.2 76 127 210 138.5 105 55 50 32 35.5 10 28
400W
(1/2HP)		 3~10 320 340 65 130 160 90 11 13 18.2 56 127 152 97.5 105 40 35 22 25 7 11
15~90 350 370 90 140 177 120 11 15 20.8 66 127 180 116 105 45 40 28 31 7 14
100~200 385 405 130 170 210 160 13 20 30.2 76 127 210 138.5 105 55 50 32 35.5 10 26
250~1800 525 545 150 210 260 185 15 23 42.2 89 127 248 160 105 65 60 40 43.5 10 41
750W
(1HP)		 3~25 360 390 90 140 177 120 11 15 20.8 66 172 180 116 125 45 40 28 31 7 15
30~120 395 425 130 170 210 160 13 20 30.2 76 172 210 138.5 125 55 50 32 35.5 10 28
125~200 425 455 150 210 260 185 15 23 42.2 89 172 248 160 125 65 60 40 43.5 10 42
250~1800 585 615 170 265 330 220 19 25 51.4 109 172 315 200 125 80 75 50 54 14 50
1500W
(2HP)		 3~25 440 480 130 170 210 160 13 20 30.2 76 190 210 138.5 145 55 50 32 35.5 10 34
30~120 470 510 150 210 260 185 15 23 42.2 89 190 248 160 145 65 60 40 43.5 10 47
125~180 515 555 170 265 330 220 19 25 51.4 109 190 315 200 145 80 75 50 54 14 52
2200W
(3HP)		 3~60 485 - 150 210 260 185 15 23 42.2 89 215 248 160 160 65 60 40 43.5 10 48
70~120 530 - 170 265 330 220 19 25 51.4 109 215 315 200 160 80 75 50 54 14 55
3700W
(5HP)		 3~25 500 - 150 210 260 185 15 23 42.2 89 215 248 160 160 65 60 40 43.5 10 50
30~80 545 - 170 265 330 220 19 25 51.4 109 215 315 200 160 80 75 50 54 14 57

GV Type : Vertical Gear Speed Reducers

Power
HP-4P		 Gear
Ratio		 A1 A2 D E F G H L J K M Y Z Output Shaft Weight
Kg
P Q S T W
75W
(1/10HP)		 3~200(B) 245 245 50 140 120 120 9 10 16 39 127 5 105 30 25 18 20 5 5.2
250~1800 355 355 148 185 169 155 11 12 18.2 50 127 3.5 105 40 35 22 25 7 6.8
100W
(1/8HP)		 3~50(B) 245 265 50 140 120 120 9 10 16 39 127 5 105 30 25 18 20 5 5.3
60~200 280 300 148 185 169 155 11 12 18.2 50 127 3.5 105 40 35 22 25 7 6.9
250~1800 380 400 170 220 195 180 11 13 20.8 57 127 4 105 45 40 28 31 7 13
200W
(1/4HP)		 3~10(B) 265 285 50 140 120 120 9 10 16 39 127 5 105 30 25 18 20 5 6.7
15~90 300 320 148 185 169 155 11 12 18.2 50 127 3.5 105 40 35 22 25 7 8.6
100~200 330 350 170 220 195 180 11 13 20.8 57 127 4 105 45 40 28 31 7 11
250~1800 465 485 185 255 230 210 13 15 30.2 66 127 4 105 55 50 32 35.5 10 28
400W
(1/2HP)		 3~10 320 340 148 185 169 155 11 12 18.2 50 127 3.5 105 40 35 22 25 7 11
15~90 350 370 170 220 195 180 11 13 20.8 57 127 4 105 45 40 28 31 7 14
100~200 385 405 185 255 230 210 13 15 30.2 66 127 4 105 55 50 32 35.5 10 26
250~1800 525 545 230 310 285 250 15 20 42.2 80 127 5 105 65 60 40 43.5 10 41
750W
(1HP)		 3~25 360 390 170 220 195 180 11 13 20.8 57 172 4 125 45 40 28 31 7 15
30~120 395 425 185 255 230 210 13 15 30.2 66 172 4 125 55 50 32 35.5 10 28
125~200 425 455 230 310 285 250 15 20 42.2 80 172 5 125 65 60 40 43.5 10 42
250~1800 585 615 280 390 360 326 19 20 51.4 89 172 5 125 80 75 50 54 14 50
1500W
(2HP)		 3~25 440 480 185 255 230 210 13 15 30.2 66 190 4 145 55 50 32 35.5 10 34
30~120 470 510 230 310 285 250 15 20 42.2 80 190 5 145 65 60 40 43.5 10 47
125~180 515 555 280 390 360 326 19 20 51.4 89 190 5 145 80 75 50 54 14 52
2200W
(3HP)		 3~60 485 - 230 310 285 250 15 20 42.2 80 215 5 160 65 60 40 43.5 10 48
70~120 530 - 280 390 360 326 19 20 51.4 89 215 5 160 80 75 50 54 14 55
3700W
(5HP)		 3~25 500 - 230 310 285 250 15 20 42.2 80 215 5 160 65 60 40 43.5 10 50
30~80 545 - 280 390 360 326 19 20 51.4 89 215 5 160 80 75 50 54 14 57
